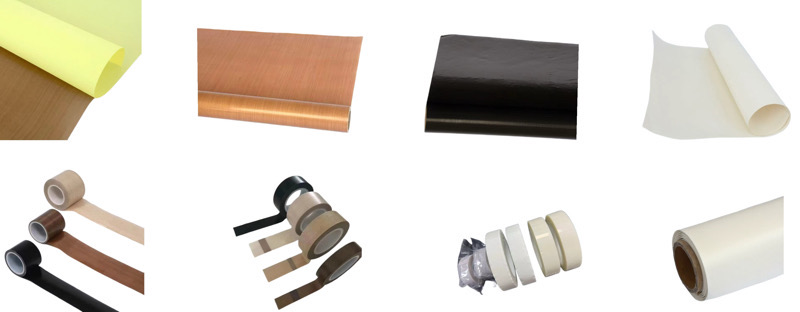

PTFE High-Temperature Fabric Product Introduction

Key Performance Parameters

Item	Parameter	Test Standard
Tensile Strength	≥ 1200 N/5cm (Warp)	EN ISO 13934-1
Air Permeability	3-50 L/m²·s	3-50 L/m²·s
Surface Resistivity	> 10¹³ Ω (Standard Type)	ASTM D257

Product Advantages

· Multi-Functional Modifications: Special specifications available (Anti-static: 10⁴-10⁶ Ω, Reinforced, etc.).

· Easy Processing: Supports secondary processing like ultrasonic cutting, high-temperature heat sealing (300℃).

· Long Service Life: 3-5 years service life at 260℃.

· Safety Certifications: Complies with RoHS, REACH, and other international environmental standards.

Typical Applications

· Industrial Field:

  · ✅ High-temperature conveyor belts (Food baking/Composite material molding).

  · ✅ Corrosion-resistant gaskets (Reactor flange seals).

· Special Protection:

  · ✅ Fire escape blankets (Momentary resistance to 600℃).

  · ✅ Aerospace thermal insulation layers (Used with aluminum foil composites).

· Electronics Manufacturing:

  · ✅ Circuit board hot-press isolation pads.

  · ✅ Semiconductor equipment protective covers.

Specification Parameters

Item	Standard Specification	Custom Service
Thickness	0.08-1.5 mm	0.05-3.0 mm
Width	1000-1500 mm	Max 2500 mm
Color	Brown / Black	RAL color chart customization supported
Seam Strength	≥ 85% Base Fabric Strength	Ultrasonic Sewing Reinforcement

Basic Physical Property Parameters

Item	Standard Value	Test Method	Remarks
Material Composition	100% PTFE Fiber Woven	-	Optional Glass Fiber Reinforcement
Thickness	0.08-1.5 mm	ASTM D1777	Thin/Medium/Thick Series
Weight	80-500 g/m²	ISO 3801	50 g/m² increments
Density	2.1-2.3 g/cm³	ASTM D792	Measured Value After Sintering

Physical Performance

Performance Indicator	Parameter Range	Test Standard	Vs. Ordinary Industrial Fabric
Tensile Strength (Warp)	≥ 1200 N/5cm	EN ISO 13934-1	3-5 times Aramid Fabric
Tensile Strength (Weft)	≥ 1000 N/5cm	EN ISO 13934-1	2-3 times Fiberglass Cloth
Elongation at Break	15-25%	ASTM D5035	Better than Ceramic Fiber Cloth
Air Permeability	3-50 L/m²·s	ISO 9237	Air-impermeable version customizable

Mechanical Processing Performance

Process	Recommended Parameter	Precautions
Cutting	Ultrasonic / Laser Cutting	Avoid Mechanical Shearing
Sewing	PTFE Thread + 3mm Stitch Pitch	Requires Special Sewing Machine
Heat Sealing	300℃ × 5s @ 0.2 MPa	Requires Release Film
Bonding	Plasma Treatment + Fluorocarbon Adhesive	Peel Strength ≥ 8 N/cm

Certification Standards

Certification Type	Standard Number	Applicable Product
Food Grade	FDA 21 CFR 177.1550	Light Color Series
Medical Device	ISO 10993-5	Medical Grade High-Purity Type
EU Environmental	RoHS 2.0 / REACH	Full Series
Chinese National Standard	GB/T 20028-2005	Industrial Basic Type

Application Reference Table

Application Scenario	Recommended Model	Key Performance Requirement
Food Drying Belts	0.3mm Thick Food Grade	FDA Certified + Air Impermeable
Chemical Flange Gaskets	1.0mm Thick Reinforced Type	Pressure Resistance ≥ 5 MPa
Aerospace Insulation Layer	0.5mm Aluminum Foil Composite Type	Momentary Resistance 600℃
Electronics Hot-Press Pads	Anti-Static Type (10⁵ Ω)	Stable Volume Resistivity
