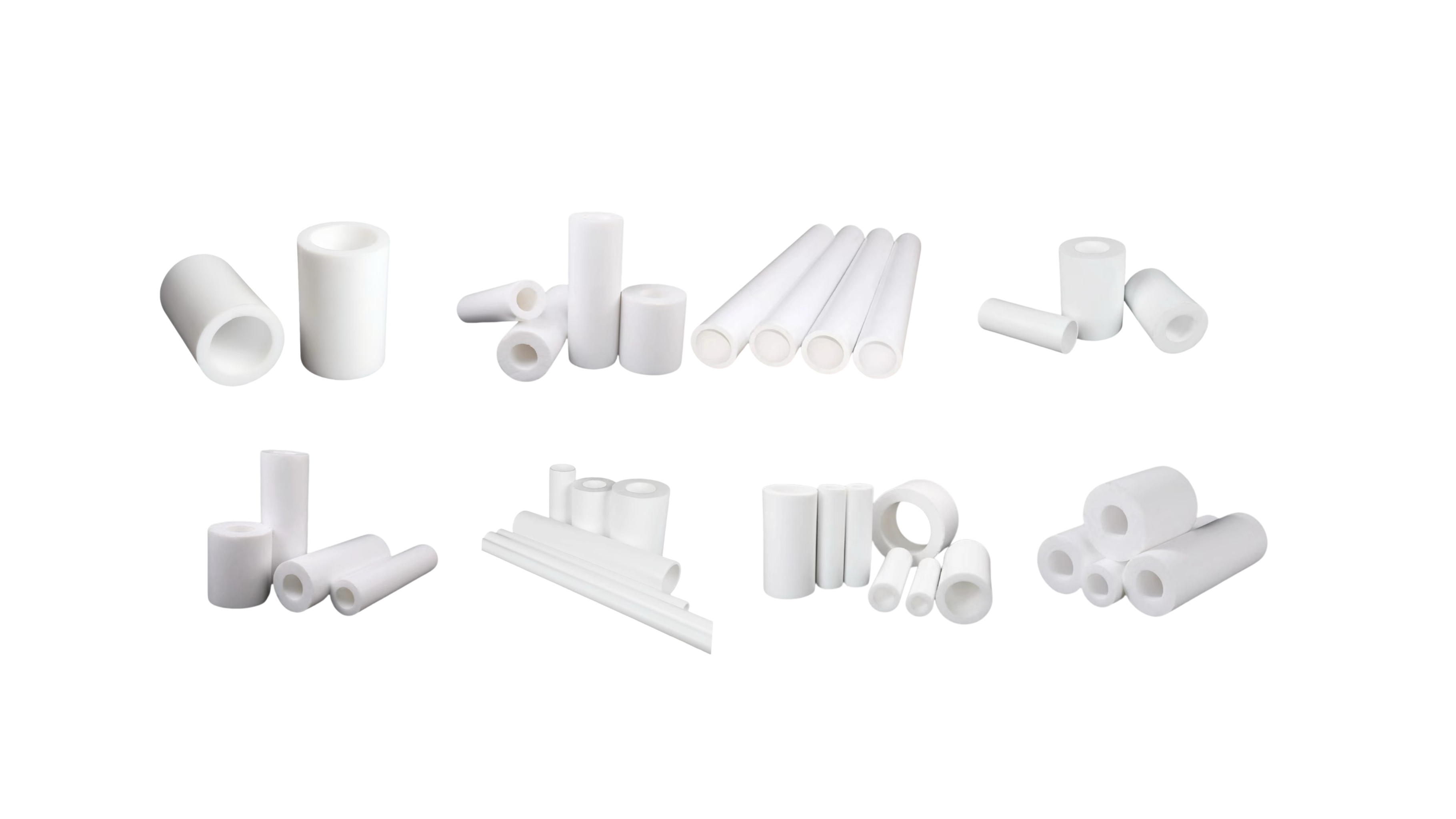

PTFE Extruded /Molded Tube/Filled PTFE TUBE

Ⅰ、Features

Teflon extruded pipe and molded pipe using polytetrafluoroethylene suspension polymerization process. In the known plastic polytetrafluoroethylene has good chemical resistance and dielectric properties.

Ⅱ、Types and Specifications:

Ⅲ、Main Properties

Ⅳ、Applications

  Transmission of corrosive liquids or gases such as hydraulic fluid and fuel in the aerospace industry; high pressure air, fuel and hydraulic transmission in the automotive industry; delivery of chlorine, steam, acid-base organic compounds, etc. in the chemical industry; Purity fluid delivery. As PTFE has the best plastic in the high temperature, low corrosion, anti-aging, high insulation and non-stick advantages.

PTFE Extruded Tube Product Introduction

Product Overview

PTFE extruded tubes are high-performance tubing products continuously formed using pure Polytetrafluoroethylene (PTFE) raw material through high-temperature extrusion processes. With excellent chemical inertness and temperature resistance, they are an ideal choice for fluid transfer systems in chemical, electronics, medical and other industries.

Core Advantages

· Superior Corrosion Resistance: Resists all strong acid and alkali media, including aqua regia and hydrofluoric acid

· Wide Temperature Range: Long-term stable operation from -200℃ to +260℃

· High Purity Assurance: Metal ion content <1 ppm (Electronics grade can achieve <0.1 ppb)

· Self-lubricating Property: Friction coefficient only 0.04-0.1, low fluid resistance

Key Parameters

Performance Indicator	Standard Value	Enhanced Type
Tensile Strength	20-25 MPa	35-40 MPa
Heat Deflection Temperature	110℃	150℃
Surface Resistivity	>10¹⁵ Ω	10³-10⁶ Ω
Burst Pressure	≥3 MPa	≥5 MPa

Product Specifications

· Size Range:

  · Inner Diameter: Φ0.5-Φ300 mm (Standard: Φ2-Φ150 mm)

  · Wall Thickness: 0.1-10 mm (Standard: 0.3-5 mm)

· Length: Continuous coil (Custom cutting supported)

· Tolerance Control: ±0.1% (Inner diameter ≤10 mm)

Product Series

· Standard Type: Pure PTFE, general industrial grade

· Enhanced Type: Glass/carbon fiber reinforced, mechanical properties improved by 50%

· Electronic Grade: Ultra-high purity, suitable for semiconductor industry

· Food Grade: FDA certified, meets food and pharmaceutical requirements

Typical Applications

· Chemical Industry: Highly corrosive media transfer systems

· Electronics Field: Ultra-pure chemical delivery pipelines

· Medical Equipment: High-purity fluid transfer systems

· Food Engineering: Media transfer complying with hygiene standards

With their excellent comprehensive performance and cost-effectiveness, PTFE extruded tubes have become the preferred solution for corrosive media transfer systems. We provide professional technical support and customization services to meet various application requirements.

Product Specifications

Parameter	Standard Specification	Customizable Range
Inner Diameter	Φ2-Φ150 mm	Φ0.5-Φ300 mm
Wall Thickness	0.3-5 mm	0.1-10 mm
Length	Continuous Coil	Custom Cutting
Tolerance Grade	ISO 3302-1	Special Precision Requirements

Basic Performance Parameters

Detailed Specification Parameters

Parameter	Standard Range	igh-Precision Custom Range	Tolerance Grade
Inner Diameter (mm)	2-150	0.5-300	±0.1% (≤10mm)
Wall Thickness (mm)	0.3-5	0.1-10	±5%
Length	Continuous Coil	Custom Cutting	±10 mm/m
Roundness Error (mm)	≤0.1	≤0.05	ISO 3302-1

Process Parameters

Process Step	Key Parameter	Quality Control Point
Extrusion Temperature	380-400℃	Temperature Control Accuracy ±2℃
Extrusion Speed	0.5-3 m/min	Adjusted according to tube diameter
Sintering Process	380℃±5℃/2-4h	Crystallinity Control 65-75%
Surface Treatment	Polishing Wheel Grit 800-3000	Ra ≤ 0.2 μm

Product Type Comparison

Model	Material Composition	Key Characteristics	Typical Application
PTFE-E	Pure PTFE	Ultra-high Purity	Semiconductor/Medical
PTFE-GF25	25% Glass Fiber	High Rigidity	High-pressure Systems
PTFE-CF15	15% Carbon Fiber	Conductivity	Anti-static Applications
PTFE-FDA	Food Grade PTFE	FDA Certified	Food & Pharmaceutical

Industry Certification Standards

Certification Type	Standard Number	Applicable Field
Pressure Piping	GB/T 1041	Industrial Piping
Food Grade	FDA 21 CFR 177	Food Processing
Medical Device	ISO 10993	Medical Equipment
Semiconductor	SEMI F57	Electronics Industry

Process Characteristics

1. Extrusion Molding: High-temperature melt extrusion, continuous production

2. Sintering Process: Precise temperature control at 380℃±5℃

3. Surface Treatment: High polish available (Ra ≤ 0.2 μm)

Typical Applications

· Chemical Piping: Highly corrosive media transfer systems

· Electronics Industry: Ultra-pure chemical delivery pipelines

· Medical Equipment: High-purity fluid transfer systems

· Food Industry: Media transfer complying with FDA standards

Product Advantages

1. Cost-effective: Continuous extrusion process, high cost performance

2. Easy Installation: Good flexibility, easy to lay

3. Maintenance-free: Anti-scaling, long service life

4. Flexible Customization: Supports special sizes and performance requirements

Selection Suggestions

· Conventional Corrosive Media: Standard Type (Wall thickness 0.5-2 mm)

· High-pressure Systems: Thick-walled Type (Wall thickness 3-5 mm)

· Ultra-pure Applications: Electronic Grade (Ra ≤ 0.2 μm)

· Wear Resistance Requirements: Modified Type with Fillers
