PTFE Extruded /Molded Tube/Filled PTFE TUBE

Ⅰ、Features

Teflon extruded pipe and molded pipe using polytetrafluoroethylene suspension polymerization process. In the known plastic polytetrafluoroethylene has good chemical resistance and dielectric properties.

Ⅱ、Types and Specifications:

Ⅲ、Main Properties

Ⅳ、Applications

  Transmission of corrosive liquids or gases such as hydraulic fluid and fuel in the aerospace industry; high pressure air, fuel and hydraulic transmission in the automotive industry; delivery of chlorine, steam, acid-base organic compounds, etc. in the chemical industry; Purity fluid delivery. As PTFE has the best plastic in the high temperature, low corrosion, anti-aging, high insulation and non-stick advantages.

PTFE-Copper Powder Composite Tube Product Introduction

Product Overview

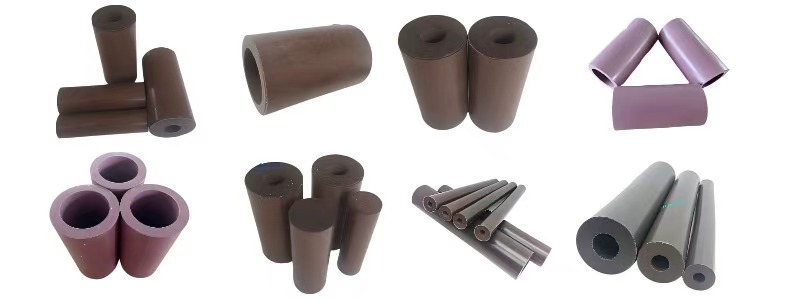

PTFE-Copper Powder Composite Tube is an innovative composite pipe material made from Polytetrafluoroethylene (PTFE) and high-purity copper powder. It combines the exceptional chemical inertness of PTFE with the excellent thermal/electrical conductivity of copper, making it an ideal solution for tackling challenges of corrosion protection and thermal management in special operating conditions.

Core Advantages

· Dual Functionality: Thermal conductivity up to 5-8 W/m·K (20 times higher than pure PTFE), while maintaining excellent corrosion resistance.

· Safe & Anti-static: Volume resistivity of 10²-10⁴ Ω·cm, effectively eliminating electrostatic hazards.

· Stable Over Wide Temperature Range: Reliable long-term operation from -100°C to +200°C.

· Long Service Life: Corrosion-resistant lifespan is 3-5 times that of metal pipes.

Through innovative material composite technology, PTFE-Copper Powder Composite Tube successfully solves the industry challenge where traditional materials cannot balance both corrosion resistance and thermal conductivity. We provide professional technical support and customization services.

Key Parameters

Indicator	Standard Value	High-Conductivity Type
Copper Powder Content	20-40 wt%	40-60 wt%
Thermal Conductivity	5-6 W/m·K	7-8 W/m·K
Burst Pressure	≥3 MPa (DN50)	≥5 MPa (DN50)
Surface Resistance	10³-10⁴ Ω	10²-10³ Ω

Product Specifications

· Diameter Range: Φ3 - Φ300 mm (Standard: Φ6 - Φ150 mm)

· Wall Thickness Options: 0.5 - 20 mm (Standard: 1 - 10 mm)

· Copper Powder Grade: Standard Electrolytic Copper Powder (4N) / Optional Ultra-High Purity Copper Powder (5N)

· Special Models:

  · Food Grade (FDA Certified)

  · Ultra-High Purity Type (for Semiconductor)

  · Enhanced Wear-Resistant Type

Typical Applications

· Chemical Heat Exchange: Reactor heat exchange tubes, condenser tubes.

· Electronics Heat Dissipation: Cooling systems for high-power devices.

· Anti-static Systems: Powder transport pipelines, flammable media transport.

· Specialized Fields: Semiconductor equipment, medical imaging systems.

Quality Assurance

· Raw Material Control: DuPont PTFE + 99.99% Electrolytic Copper Powder.

· Production Process: Isostatic pressing + Program-controlled temperature sintering.

· Testing Standards:

  · 100% Electrical/Thermal Conductivity Performance Test

  · Ultrasonic Non-destructive Testing

  · EDS Copper Powder Distribution Analysis

· International Certifications: RoHS, REACH, FDA (Optional)

Core Characteristics

Characteristic	Parameter Performance	Application Advantage
Thermal Conductivity	Thermal Conductivity 5-8 W/m·K (20-30x pure PTFE)	Significantly improves heat exchange efficiency
Electrical Conductivity	Volume Resistivity 10²-10⁴ Ω·cm	Effectively prevents electrostatic accumulation
Corrosion Resistance	Resists acid/alkali media pH 1-14 (except strong oxidizing acids)	Extends equipment service life
Operating Temperature	-100°C ~ +200°C	Stable operation over a wide temperature range

Product Specifications

Parameter	Standard Specification	Customizable Options
Tube Diameter	Φ6 - Φ150 mm	Φ3 - Φ300 mm
Wall Thickness	1 - 10 mm	0.5 - 20 mm
Copper Powder Content	20 - 40 wt%	10 - 60 wt%
Length	1 - 5 m / piece	Custom Lengths

Basic Performance Parameters

Performance Indicator	20% Cu Content	40% Cu Content	Test Standard
Density (g/cm³)	2.4 - 2.6	3.0 - 3.3	ISO 1183
Tensile Strength (MPa)	18 - 22	15 - 18	ISO 527
Thermal Conductivity (W/m·K)	5 - 6	7 - 8	ASTM E1461
Volume Resistivity (Ω·cm)	10³ - 10⁴	10² - 10³	IEC 60093
Coefficient of Thermal Expansion (10⁻⁶/K)	60 - 80	50 - 70	ASTM D696

Detailed Specification Parameters

Parameter	Standard Specification	Customization Range	Machining Tolerance
Outer Diameter (mm)	6 - 150	3 - 300	±0.1% (≤50mm)
Wall Thickness (mm)	1 - 10	0.5 - 20	±5%
Cu Powder Distribution Uniformity (%)	≥95	≥98	EDS Area Scan
Straightness (mm/m)	≤2	≤1	ISO 2768

Process Parameters

Process Step	Key Parameter	Quality Control Point
Mixing	Copper Powder Particle Size 5-20 μm	Moisture Content < 0.1%
Extrusion	Extrusion Ratio 20:1	Temperature Gradient Control ±3°C
Sintering	380°C ±5°C / 4-6 h	Crystallinity 65-75%
Finishing	Turning Speed 500-800 rpm	Ra ≤ 0.8 μm

Application Selection Guide

Application Scenario	Recommended Model	Key Parameter Configuration
Heat Exchanger Tubes	TCU-30	Copper Powder 30% + Wall Thickness 2mm
Anti-static Pipes	TCU-45	Copper Powder 45% + Conductive Layer
Semiconductor Cooling	TCU-20-ULTRA	Ultra-High Purity Copper Powder (5N)
Food Grade Applications	TCU-25-FDA	FDA Certified Raw Materials

Innovative Technology Parameters

Technology Type	Technical Indicator	Performance Improvement
Nano-Copper Composite	Add 5nm Copper Particles	Thermal Conductivity +40%
Gradient Composite	Radial Gradient of Cu Powder Content	Optimized Stress Distribution
Surface Modification	Micro-arc Oxidation Treatment	Wear Resistance +200%
Intelligent Monitoring	Embedded Temperature Sensor	Real-time Thermal Monitoring

Typical Applications

· Heat Exchange Systems:

  · Chemical reactor heat exchange tubes

  · Electronic equipment cooling tubes

· Anti-static Systems:

  · Flammable/explosive media transport pipes

  · Powder transport pipelines

· Specialized Fields:

  · Semiconductor process equipment

  · Medical imaging equipment cooling tubes

Product Advantages

1. Dual Functionality: Simultaneously addresses heat dissipation and corrosion protection needs.

2. Safe & Reliable: Avoids safety hazards caused by static electricity.

3. Economical & Durable: Service life is 3-5 times that of metal pipes.

4. Easy Installation: Uses the same connection methods as traditional piping.

Selection Guide

· Primarily for Heat Dissipation: Choose copper powder content 30-40%.

· Primarily for Electrical Conductivity: Choose copper powder content 40-60%.

· Food & Medical: Choose medical grade copper powder (FDA certified).
