Material Types and Specification System

Type	Structural Features	Common Diameter Range (mm)	Primary Production Method	Core Performance Characteristics	Main Application Scenarios

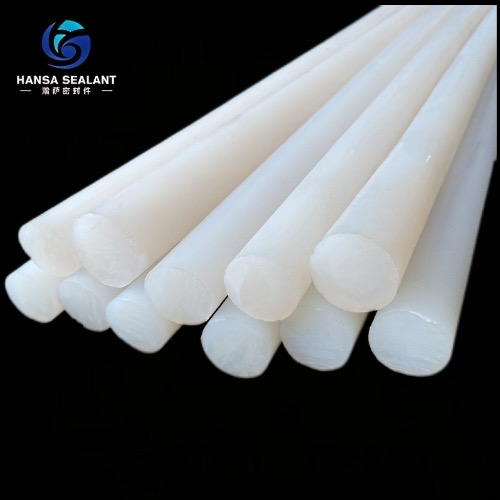

General Grade Rod	Solid, translucent white/natural	6 - 300	Compression Molding, Extrusion	Balanced overall performance, meets general industrial standards	Machined parts, seals, insulators, corrosion-resistant structural components
Electronic Grade (High Purity) Rod	Strict purity control	10 - 200	Isostatic Molding, Specialized Extrusion	Metal ion leachables ≤0.1ppb, smooth surface	Semiconductor wet process equipment components, wafer handling fixtures, high-purity fluid fittings
Welding Rod/Filler Rod	Fine diameter solid or profile	1.0 - 5.0	Precision Extrusion	Matched melt flow, high weld joint strength	PFA lining repair, plastic welding filler, valve seat build-up
Modified Functional Rod	Contains additives	Custom	Blending Modification + Molding	Anti-static (10³-10⁶Ω), carbon fiber reinforced, etc.	Explosion-proof environments, high load/wear applications

Technical Parameters & Performance Indicators

Physical & Mechanical Properties

Property	Typical Value/Range	Standard (Reference)
Density (g/cm³)	2.12 - 2.17	ASTM D792
Tensile Strength (23°C)	≥ 28 MPa	ASTM D3307
Elongation at Break (23°C)	≥ 300%	ASTM D3307
Yield Strength (23°C)	≥ 15 MPa	ASTM D3307
Flexural Modulus (23°C)	625 - 700 MPa	ASTM D790
Hardness (Shore D)	D55 - D60	ASTM D2240
Water Absorption (24h)	< 0.03%	ASTM D570

Thermal & Electrical Properties

Property	Typical Value/Range	Standard (Reference)
Melting Point	302 - 310°C	ASTM D3418
Continuous Service Temperature	-200°C ~ +260°C	-
Coefficient of Linear Expansion (21-100°C)	14×10⁻⁵ mm/mm/°C	ASTM D696
Dielectric Strength (0.25mm thick)	80 kV/mm	ASTM D149
Dielectric Constant (60-10⁶Hz)	2.03	ASTM D150
Volume Resistivity	≥ 10¹⁸ Ω·cm	ASTM D257

Environmental & Long-Term Performance

Property	Typical Value/Range	Remarks
Chemical Corrosion Resistance	Insoluble/unreactive with all known chemicals	Minor swelling in some halogenated solvents at high temp
Weathering/UV Resistance	Excellent, no yellowing/aging	Fully fluorinated molecular structure, no additives needed
Limiting Oxygen Index (LOI)	> 95%	Does not burn in air
Creep Resistance	Superior to PTFE	Significantly reduced long-term deformation under load

Typical Application Fields

Application Field	Specific Uses	Recommended Grade	Key Requirements
Semiconductor Manufacturing	Wet etch tank components, wafer carriers, baskets, CMP retaining rings, high-purity fluid fitting bodies	Electronic Grade Rod, Dia. 20-200mm	Ultra-low metal leachables, resistance to strong acids/oxidizers, dimensional stability
Chemical & Pharmaceutical	Valve stems, pump shafts, seal bushings, flange gaskets, reactor nozzles, pipe supports	General Grade / Welding Rod, High-density molded	Resistance to all media corrosion, creep resistance, long life
Resistance to all media corrosion, creep resistance, long life	Lithium battery electrolyte delivery system parts, PV wet process equipment rollers	Modified / High Purity Grade	Resistance to DMC/EMC solvents, anti-crystallization, low friction
Medical & Life Sciences	Surgical instrument handles, dialysis equipment connectors, implantable device fixtures	Biocompatible Grade	Physiological inertness, sterilizable (steam/EtO), FDA compliance
Aerospace	Fuel system insulation components, LOX/LN2 cryogenic seal seats	High Reliability Grade	Impact toughness across wide temp range, extreme cold resistance, low outgassing
Analytical Instruments	Chromatograph flow path fittings, mass spectrometer ion source bases, optical lens holders	Transparent / Low Fluorescence Grade	Visual translucency, no impurity interference, machined surface finish

Processing, Joining & Installation Guide

1. Machining Essentials

-   Turning/Milling: Recommended linear speed 80-120m/min, feed rate 0.05-0.1mm/r. Use sharp carbide tools, adequate cooling (air or water-based coolant), control cutting temperature <150°C to prevent melting/adhesion.

-   Drilling: Use peck drilling cycle, withdraw tool regularly for chip evacuation, avoid heat buildup.

-   Dimensional Stability: For precision parts, rough machining followed by a 24-hour natural rest period before finishing is recommended to fully release stress.

2. Joining & Assembly

-   Butt Fusion: Suitable for permanent joining of PFA rod to PFA pipe/rod. Uses specialized butt welding machine to heat ends to molten state, then press and cool. High joint strength, no particle contamination.

-   Flare/Compression Connection: Rods can be machined into flare fitting bodies or compression sleeves for use with PFA tubing; suitable for fluid systems requiring disassembly/maintenance.

-   Insert Molding: Pre-heated metal inserts placed in mold, over-molded with PFA via injection molding to create plastic/metal composite components.

-   Welding: Using PFA filler rod and hot air welding gun for repairing cracks, building up profiles, or fabricating complex structures.

3. Surface Post-Treatment

-   Plasma Treatment: Significantly increases PFA surface energy, enabling bonding with epoxy adhesives, fluoroelastomers, etc. Bond strength can meet ASTM D4541 standards.

-   Precision Polishing: Mechanical or chemical polishing can achieve surface roughness Ra ≤ 0.4μm, suitable for ultra-high purity flow paths.

 Selection Decision Matrix

Application Scenario	Primary Performance Requirement	Recommended Rod Type	Key Selection Parameters	Risks to Avoid
Semiconductor Wet Etch Components	Ultra-high purity, strong oxidizing acid resistance	Electronic Grade Molded Rod	Metal ion leachables <0.1ppb; Density >2.15	Contamination from substandard/recycled material
Chemical Valve Stems	Creep resistance, high temp resistance, torque transmission	High Density Extruded/Molded Rod	Tensile Strength >28MPa; Heat Deflection Temperature	Stress relaxation from low molecular weight grade
-196°C Liquid Nitrogen Seal Seats	Extreme low temp resistance, no cracking	Specialized Cryogenic Grade Rod	No fracture in -200°C Izod impact test	Low-temperature embrittlement from toughening agents
Lithium Battery Electrolyte Tubing Fittings	Solvent resistance (DMC), leak-proof	Modified Anti-Swelling Grade	Mass change rate <0.1% after immersion	Swelling of standard grade in carbonate solvents
Medical Device Fixtures	Biocompatibility, sterilizable	FDA Compliant Grade	USP Class VI or ISO 10993	Residual contamination from colorants/release agents
High-Temperature Sensor Housings	Electrical insulation, thermal stability	High Purity Extruded Rod	Volume Resistivity >10¹⁷ Ω·cm	Sharp increase in dielectric loss with temperature

Industry Customized Solutions

1. Sub-3nm Advanced Process Semiconductor Equipment

-   Requirement: Resistance to radical corrosion in high-density plasma environments; component dimensional tolerances at micron level.

-   Solution: Ultra-high molecular weight PFA resin, isostatic pressing process for large-size dense billets, machined via 5-axis CNC precision.

-   Application: Dielectric etcher gas distribution plates, CMP polishing head retaining rings.

2. Hydrogen Energy & Fuel Cells

-   Requirement: No hydrogen embrittlement in high-pressure H₂ environment, low permeability; bipolar frame insulation.

-   Solution: Glass fiber reinforced modified PFA rod, enhancing creep resistance and dimensional stability.

-   Application: Fuel cell stack endplate insulation assemblies, high-pressure valve stem seal bushings.

3. Biopharmaceutical Single-Use Systems

-   Requirement: Pressure-resistant, steam-sterilizable connectors compatible with Single-Use Systems (SUS).

-   Solution: High-clarity PFA rod machined into dead-leg-free fittings, supports SIP (Steam-In-Place) cycles.

-   Application: Single-use bioreactor sensor sheaths, aseptic transfer ports.

4. Optical Communications & Lasers

-   Requirement: Low fluorescence background, high light transmission, precision optical support.

-   Solution: Ultra-high purity transparent PFA rod, annealed to eliminate birefringence.

-   Application: Laser crystal holders, optical communication module insulating standoffs.

 Storage & Maintenance

Storage Conditions

-   Environment: Store in cool, dry, clean warehouse; avoid mixing with volatile chemicals (plasticizers, solvents).

-   Protection: Keep sealed in original packaging, protect from light and long-term dust accumulation. No hygroscopicity, moisture-proofing unnecessary.

-   Stacking: Long, thin rods should be supported horizontally or suspended to prevent gravity-induced bending.

Usage Maintenance

-   Pre-treatment: Annealing recommended before machining (150-180°C for 2-4h, slow cool) to effectively release internal stress and prevent cracking.

-   Cleaning: For ultra-pure applications, ultrasonic degreasing and ultrapure water rinsing required. Avoid solvents like acetone that may leave residues.

-   Repair: Surface scratches can be wet sanded with fine grit paper followed by flame polishing; deep cracks can be repaired using hot air welding with PFA filler rod.

-   Lifespan Assessment: Under normal operating conditions (<260°C, no high radiation), PFA molecular chains are stable. Component design life often exceeds 10 years.

 Development Trends

Technology Development Directions

1.  High Molecular Weight Resins: Development of ultra-high viscosity, narrow molecular weight distribution PFA resins to further enhance stress crack resistance and long-term creep modulus.

2.  Composite Reinforcement: Carbon fiber, Polyimide (PI) fiber reinforced PFA rods achieving >120MPa flexural strength, expanding structural applications.

3.  Functional Intelligence: "Smart rods" with embedded fiber Bragg grating sensors for real-time temperature and strain monitoring.

4.  Near-Net Shape Molding: Large-diameter rod molding technology advancing towards Φ500mm+ to reduce material waste.

Market Application Expansion

1.  Heterojunction (HJT) Photovoltaics: Replacing traditional metal rollers with corrosion-resistant, non-contaminating PFA transport rollers in texturing and PECVD processes.

2.  Low Carbon & Environmental Protection: As a high-performance thermoplastic, PFA rod machining waste can be 100% recycled and re-pelletized for non-critical applications.

3.  Nuclear Engineering & Reprocessing: Radiation-resistant modified PFA for seals and insulation components in spent fuel treatment equipment.

4.  Deep Space Exploration: Withstanding extreme temperature cycling and cosmic radiation; used for insulation components in satellite propulsion system valves.

PFA rod stock, as the most comprehensively performing melt-processable member of the fluoroplastic family, leverages its core advantages—extreme corrosion resistance + ultra-wide temperature range + ultra-high purity + precision formability—to become an indispensable critical engineering plastic for high-tech industries such as semiconductor manufacturing, chemical pharmaceuticals, and new energy. From core consumables in wafer processing equipment to the sealing cornerstone of fluid control under harsh conditions, PFA rods continuously expand application boundaries through ongoing resin modification and process innovation. Strict adherence to selection logic, implementation of precision machining, and scientific maintenance are fundamental guarantees for the long-term reliable service of PFA components. Amidst the waves of advancing chip process technology, evolving energy structures, and breakthroughs in life sciences, PFA rods, as the "invisible backbone" of microfabrication and clean technology, will see their strategic value and technical depth continue to rise.
