PTFE Extruded /Molded Tube/Filled PTFE TUBE

Ⅰ、Features

Teflon extruded pipe and molded pipe using polytetrafluoroethylene suspension polymerization process. In the known plastic polytetrafluoroethylene has good chemical resistance and dielectric properties.

Ⅱ、Types and Specifications:

Ⅲ、Main Properties

Ⅳ、Applications

  Transmission of corrosive liquids or gases such as hydraulic fluid and fuel in the aerospace industry; high pressure air, fuel and hydraulic transmission in the automotive industry; delivery of chlorine, steam, acid-base organic compounds, etc. in the chemical industry; Purity fluid delivery. As PTFE has the best plastic in the high temperature, low corrosion, anti-aging, high insulation and non-stick advantages.

PTFE-Carbon Fiber Composite Tube Product Introduction

Product Overview

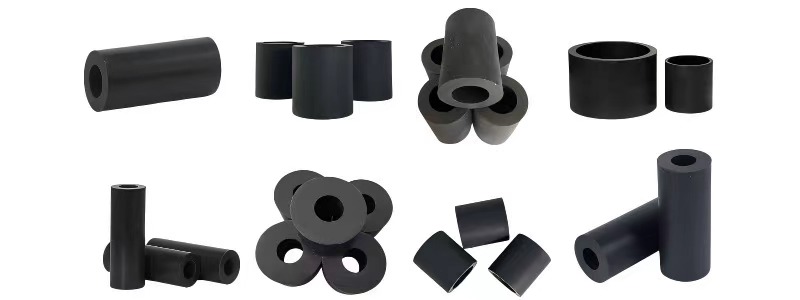

PTFE-Carbon Fiber Composite Tube is a new-generation engineered tubing material manufactured by compounding Polytetrafluoroethylene (PTFE) with high-performance carbon fibers. Through a unique composite process, it perfectly combines the chemical inertness of PTFE with the mechanical strength of carbon fiber, offering a high-end tubing solution specifically designed for extreme operating conditions.

Core Advantages

· Ultra-High Strength: Tensile strength reaches 80-120 MPa, 4-6 times that of pure PTFE tubes.

· Exceptional Corrosion Resistance: Withstands all highly corrosive media, including aqua regia and hydrofluoric acid.

· Lightweight Design: Density only 2.0-2.3 g/cm³, 60% lighter than metal tubes.

· Multifunctionality: Adjustable conductivity (10²-10⁶ Ω·cm) and thermal conductivity (5-8 W/m·K).

Key Technical Parameters

Indicator	Standard Value	Enhanced Type
Operating Temperature Range	-200°C ~ +260°C	-200°C ~ +280°C
Burst Pressure	≥15 MPa	≥20 MPa
Wear Resistance	< 0.5×10⁻⁶ mm³/N·m	< 0.3×10⁻⁶ mm³/N·m
Coefficient of Thermal Expansion	30-40 ×10⁻⁶ /K	25-35 ×10⁻⁶ /K

Product Series

· Standard Series: 15-20% carbon fiber content, general industrial grade.

· High-Performance Series: 25-30% carbon fiber, specialized for aerospace.

· Ultra-Pure Series: Semiconductor grade purity (metal ions <1 ppb).

· Medical Series: ISO 10993 certified, implant-grade safety.

Typical Applications

· Aerospace: Fuel hydraulic systems, spacecraft propulsion lines.

· Energy Industry: High-pressure hydrogen transport, fuel cell components.

· Semiconductor: Ultra-high purity chemical delivery systems.

· Medical Devices: High-precision interventional catheters, implantable instruments.

Quality Assurance System

· Raw Materials: DuPont PTFE + Toray T800 Carbon Fiber.

· Process: 3D Braiding + Vacuum Pressure Impregnation.

· Testing:

  · 100% Ultrasonic Flaw Detection.

  · Carbon Fiber Distribution Scan Analysis.

  · 3x Working Pressure Test.

· Certifications: AS9100D, SEMI F57, ISO 13485.

Core Characteristics

Product Specifications

Parameter	Standard Specification	Customizable Options
Tube Diameter	Φ6 - Φ200  mm	Φ3 - Φ500 mm
Wall Thickness	1 - 10 mm	0.5 - 20 mm
Carbon Fiber Content	15 - 30 wt%	5 - 40 wt%
Length	1 - 3 m / piece	0.5 - 6 m / piece

Process Parameters

Process Step	Key Parameter	Quality Control Point
Fiber Pre-treatment	Plasma Surface Activation	Contact Angle < 30°
Impregnation Molding	Vacuum Pressure 0.08 MPa	Porosity < 0.5%
Sintering	385°C ±5°C / 5-8 h	Crystallinity 70-75%
Finishing	Diamond Tool Turning	Ra ≤ 0.4 μm

Application Selection Guide

Application Field	Recommended CF Content	Key Configuration	Expected Service Life
Aerospace	25-30%	3D Braiding + Outer PEEK Coating	8-10 Years
Semiconductor	10-15%	Ultra-High Purity Carbon Fiber (5N)	5-7 Years
Energy Equipment	20-25%	Conductive Type (10² Ω·cm)	10-12 Years
Medical Implant	5-10%	ISO 10993	Certified Permanent Implant

Innovative Technology Parameters
